Specifications
|
Item |

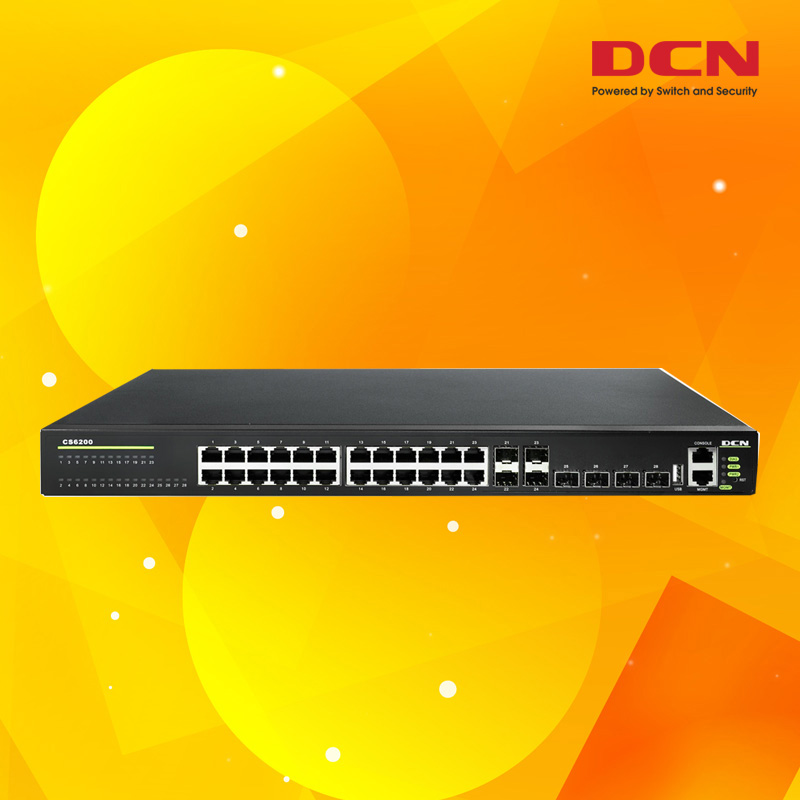

CS6200-28X-P-EI(R2) |
||
|
Performance |
|||
| Switching Capacity |
128Gbps |
||
| Forwarding Rate |
95Mpps |
||
| Jumbo Frame |
10K |
||
| MAC Address |
16K |
||
| ARP Table |
4K |
||
| Routing Table |
13K |
||
| ACL Table |
3K |
||
| L3 Interface |
Max 1K |
||
|
Physical |
|||
| Dimension (W*H*D) | 440mm x 44mm x 320mm | ||
| Management port | 1 x RJ45 Ethernet Management port | ||
|
1x Console port |
|||
|
1x USB2.0 interface |
|||
| Relative Humidity | 5%~95% non-condensing | ||
| Temperature | Working 0°C~50°C, storage -40°C~70°C | ||
| Power Supply | Dual AC:100~240VAC, 50~60Hz | ||
| Power Consumption | <30W | ||
|
Main Features |
|||
|
L1, L2 Features |
IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000BASE-X), IEEE802.3ab(1000Base-T), IEEE802.3ae(10GBase), IEEE802.3x, IEEE802.3ak(10GBASE-CX4), Auto MDI/MDIX |
||
| Port loopback detectionLLDP and LLDP-MEDUDLD
802.3ad LACP, max 128 group trunks with max 8 ports for each trunk LACP load balance |
|||
|
N:1 Port Mirroring RSPAN |
|||
|
IEEEE802.1d(STP) IEEEE802.1w(RSTP) IEEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel |
|||
|
802.1Q, 4K VLAN MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN QinQ, Flexible QinQ GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control |
|||
| IGMP v1/v2/v3 Snooping and L2 Query, IGMP Proxy,ND Snooping
MLDv1/v2 Snooping |
|||
|
Port Security |
|||
| Flow Control: HOL, IEEE802.3xBandwidth Control | |||
| L3 Features | Static Routing, RIPv1/v2, OSPFv2, BGP4OSPFv3, BGP4+OSPF multiple processes
LPM Routing Policy-based routing (PBR) for IPv4 and IPv6 VRRP URPF, ECMP BFD |
||
| DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDPStatic Multicast RouteMulticast Receive Control
Illegal Multicast Source Detect |
|||
| ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP LimitAnti ARP Cheat, Anti ARP Scan | |||
| DNS Client, DNS Relay | |||
| GRE Tunnel | |||
| IPv6 | 6 to 4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE TunnelICMPv6, ND, DNSv6IPv6 LPM Routing, IPv6 Policy-based Routing (PBR)
IPv6 VRRPv3, IPv6 URPF, IPv6 RA RIPng, OSPFv3, BGP4+ MLD Snooping, IPv6 Multicast VLAN MLDv1/v2, PIM-SM/DM for IPv6, IPv6 Anycast RP, IPv6 ACL, IPv6 QoS |
||
| QoS | 8 Queues SP, WDRR, SWDRRTraffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port numberTraffic Policing
PRI Mark/Remark |
||
| ACL | IP ACL, MAC ACL, IP-MAC ACLStandard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoSRedirect and Statistics
Rules can be configured to port, VLAN Time Ranged ACL |
||
| Security | 802.1x AAAPort, MAC-based authenticationAccounting based on time length and traffic
Guest VLAN and auto VLAN |
||
| RADIUS for IPv4 and IPv6 | |||
| TACACS+ for IPv4 and IPv6 | |||
| MAB | |||
| DHCPv4/v6Traffic Monitor | DHCP Server/Client for IPv4/IPv6DHCP Relay/Option 82DHCP Snooping/Option 82 | ||
| Traffic Monitor | sFlow Traffic Analysis | ||
| Security Network Management | CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6Syslog and external Syslog ServerHTTP SSL
SNMP MIB, SNMP TRAP, RMOM 1,2,3,9 FTP/TFTP SNTP/NTP Authentication by Radius/TACACS SSH v1/v2 Dual firmware images/ Configuration files 802.3ah OAM, 802.1ag OAM |
||
| Data Center Features | VSF (Virtual Switch Framework) | ||
