Specifications
Item |

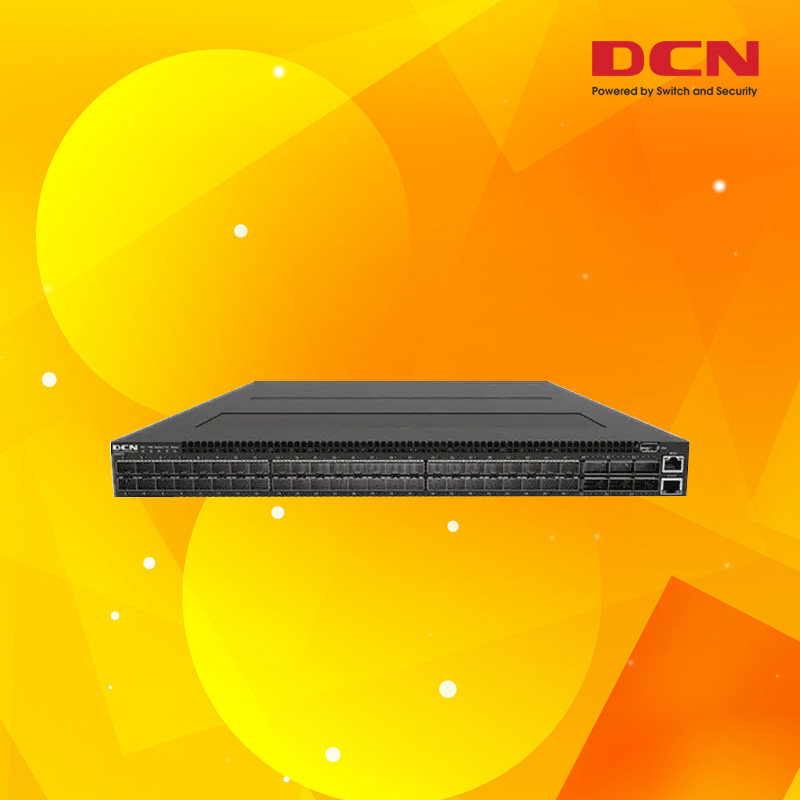

CS6580-48S6CQ-SI |
Physical port | 48 * 10G/25G SFP28 and 6 * 100G QSFP28 |
Management port | Console port RJ4510/100/1000Mbps RJ45 Ethernet Management portUSB2.0 Management port |
Performance | |
Switching Capacity | 3.6 Tbps |
Forwarding Rate | 2.6 bpps |
MAC Address | 160K(Bridge)/80K(Router)/128K(Standard) UFT configuration, default is the bridge |
ARP Table | 32K(Bridge)/128K(Router)/80K(Standard) UFT configuration, default is the bridge |
Routing Table | 24K~360K(Bridge)/40K~448K(Router)/24K~360K(Standard) UFT configuration, default is the bridge |
Physical | |
Dimension(W*H*D) | 438mm*44mm*470mm |
Relative Humidity | 10%~90% non-condensing |
Temperature | Working 0°C~50°C, storage -40°C~75°C |
Power Input | AC: 100~240V,50~60 Hz |
Power Supply | 1+1 Modular Redundant |
Airflow | Back-to-front |
Main Features | |
L1, L2 Features | IEEE 802.3(10Base-T), IEEE 802.3u(100Base-TX), IEEE 802.3ab(1000Base-T), IEEE 802.3ae(10GBase), IEEE802.3xIEEE 802.3ak(10GBASE-CX4)IEEE 802.3ba |
9k Jumbo Frame | |
N:1 Port MirroringRSPAN | |
IEEEE802.1d(STP)IEEEE802.1w(RSTP)IEEEE802.1s(MSTP)
Root Guard BPDU Guard BPDU Tunnel |
|
802.1Q, 4096 VLANMAC VLAN, Protocol VLAN, Super VLAN | |
Flow control: HOL, IEEE802.3xBandwidth Control | |
L3 Features | Static Routing, RIPv1/v2, OSPFv2, BGP4Policy-based Routing (PBR)VRRP
URPF ECMP |
QoS | 8 QueuesSWRR, SP, WRR, WDRR, SWDRRTraffic Classification Based on 802.1p CoS, ToS, DiffServ DSCP, ACL, port number
PRI Mark/Remark |
ACL | IPv4 ACL inbound and outboundDynamic modification of ACLStatistics ACL based
Redirect ACL based |
Security | Port isolationAnti-ARPAnti DOS-attack |
Network Management | CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4Syslog and external Syslog serverSNMP MIB, SNMP TRAP
FTP/TFTP SNTP/NTP RMOM 1,2,3,9 Authentication by radius SSH v1/v2 Dual firmware images/ Configuration files |
Data Center Features | VSF |
Stacking | N:1 Stacking |
Application
Data Center Applications
CS6580-48S6CQ-SI switch works as TOR switches and connect to the core using 100GE ports.
Order Information
Product |
Description |
CS6580-48S6CQ-SI | 100G Ethernet Datacenter Switch (48*10/25G(SFP28) +6*100GbE(QSFP28)) , Redundant and modular Design. Full L3 features, Default with two AC power, Air Flow back to front |
