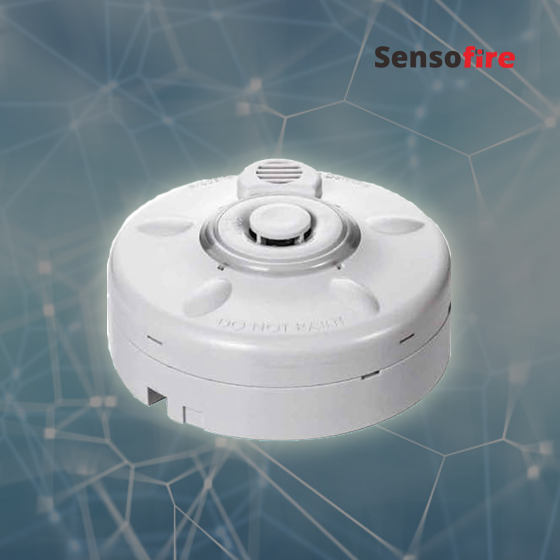

Gas Detector

Characteristics:

  • The SDG-822 features advanced technology, high accurate detection, low power-consumption and fast reaction time it can detect natural gas and propane gas. Built-in buzzer and LED indicator alert by sounding and flashing.
  • Sounding and flashing in alarm status the green LED is lit during monitoring and the red LED flashes in alarm status.
  • Dual power input: 12VDC and 24VDC operation in the same unit. No adjustment is required.
  • Optional 110VAC or 220VAC adaptor is available.



Add to wishlist
Categories: ,

Description



SDG-822
 Approval UL
Power Source 24V DC 12V DC
Standby Current 20 – 30 mA 40 – 45 mA
Alarm Current 40 – 70 mA 50 – 75 mA
Warm – up periode 5 – 8 minutes
Sensitivity 0.021 – 0.300% ( Propane )

0.050 – 0.714% ( Methane )
Alarm Sound 85 dB / 3M and above
Detection type Natural Gas & Propane Gas
Ambient Temperature -10° C – + 55° C
Dimensions 102mm (Dia.) x 40.5 mm (H)
Weight About 130g
