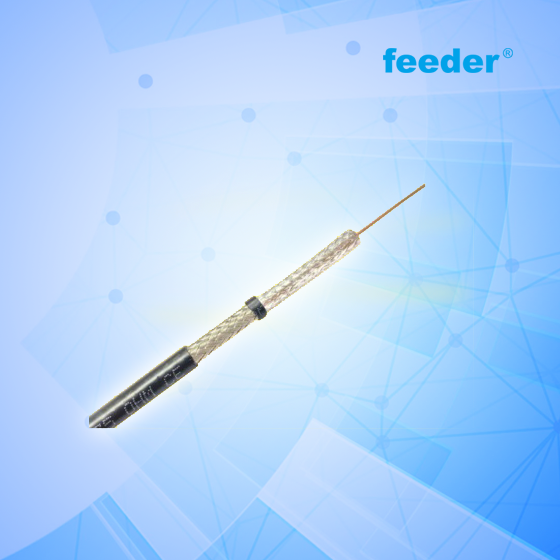

RG-6/U is a common type of coaxial cable used in a wide variety of residential and commercial applications. An RG-6/U coaxial cable has a characteristic impedance of 75 Ω. The term, RG-6, is generic and is applied to a wide variety of cable designs, which differ from one another in shielding characteristics, center conductor composition, dielectric type and jacket type

Add to wishlist
Categories: ,

Description

CONSTRUCTION

Center Conductor                   1.02 ± 0.01mm Copper Clad Steel

Dielectric                                  4.75 ± 0.05mm Foam Polyethelene HDPE

Shield                                        Bonded Al Foil to dielectric

Braid Coverage                        Al Alloy Braiding 95% Coverage

Power Part                               2 x 0.75mm Copper + PVC Insulation

Jacket                                        6.80 ± 0.05mm PVC Black

CHARACTERISTICS

Sparker Test                                4000 Vac

Impedance                                   75 ± 3 Ohm

Capacitance                                 54 ± 3pF/m

Velocity Of Propagation                  85%

ATTENUATION
Frequency Range RG- 11 (dB / 100m)
5 Mhz 1.25
55 Mhz 3.15
200 Mhz 3.92
250 Mhz 6.72
350 Mhz 7.94
450 Mhz 9.02
500 Mhz 9.51
600 Mhz 10.43
750 Mhz 11.97
870 Mhz 13.09
1000 Mhz 14.27

SPECIFICATION

Conductor Material Clad Steel
Nom Diameter 1,02mm
Dielectric Material Polyethylene HDPE
Nom Diameter 4,75 mm
Shield Material Aluminium Foil bonded to dielectric
Nom Diameter 95%
Jacket Material PVC
Nom Diameter 6,91 mm
Jacket Thickness 0,76 mm
Impedance  75 Ω
