Description
Specifications
|
Item |

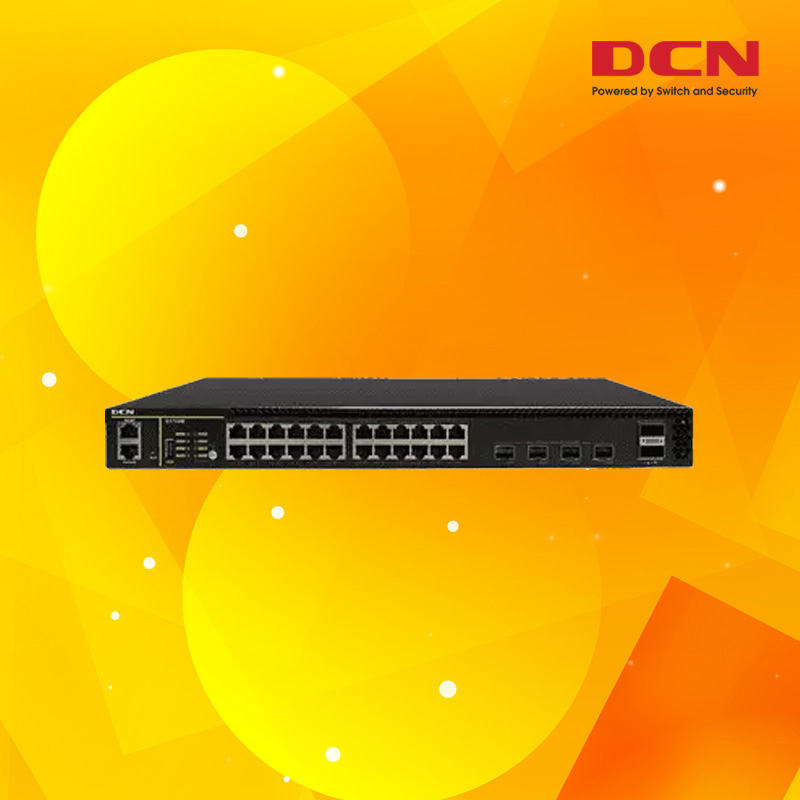

S5750M-30X-P-SI |
| Physical port |
24 x 100/1000M/2.5GBaseT + 4 x 10GE(SFP+) + 2 x 40G(QSFP+) Auto MIDX |
| Management port |
100/1000M BaseT RJ45 Ethernet Management port |
|
Console port (RJ45) |
|
|
Reset port |
|
|
USB2.0 interface |
|
|
Performance |
|
| Switching Capacity |
360Gbps |
| Forwarding Rate |
267.84Mpps |
| MAC Address | 32K |
| Routing Table |
16K |
| L3 Interface |
Max 1K |
|
Physical |
|
| Dimension (W*H*D) | 440mm*44mm*380mm |
| Relative Humidity | 5%~95% non-condensing |
| Temperature | Working 0°C~45°C, storage -40°C~75°C |
| Power Supply | 2 power slots, 1+1 Modular Redundant (standard with 1 AC) |
| PoE |
IEEE 802.3af (15.4W) IEEE 802.3at (30W) IEEE 802.3bt (60W) (the first 8 ports) Total PoE power: 530W(1 PSU) or 1060W(2 PSUs) |
|
Main Features |
|
|
L1, L2 Features |
IEEE802.3(10Base-T), IEEE802.3u(100Base-TX), IEEE802.3z(1000BASE-X), IEEE802.3ab(1000Base-T), IEEE 802.3bz(2.5GBase-T), IEEE802.3ae(10GBase), IEEE802.3x, IEEE802.3ak(10GBASE-CX4), IEEE802.3ba(40GBASE-X) |
| Port loopback detectionLLDP and LLDP-MEDUDLDIEEE 802.3ad LACP, max 128 group trunks with max 8 ports for each trunk
LACP load balance ERPS (G.8032) |
|
|
N:1 Port Mirroring RSPAN |
|
|
IEEEE802.1d(STP) IEEEE802.1w(RSTP) IEEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel |
|
|
IEEE 802.1Q, 4096 VLAN MAC VLAN, Voice VLAN, PVLAN, Protocol VLAN, Multicast VLAN QinQ, Selective QinQ, Flexible QinQ GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control |
|
| IGMP v1/v2/v3 Snooping and L2 QueryND Snooping
MLDv1/v2 Snooping |
|
|
Port Security |
|
| Flow Control: HOL, IEEE802.3xBandwidth Control | |
| L3 Features | Static Routing, RIPv1/v2, OSPFv2, BGP4OSPFv3, BGP4+OSPF multiple processesPolicy-based routing (PBR) for IPv4 and IPv6VRRPURPF,ECMPBFD |
| IGMP v1/v2/v3, IGMP Proxy,DVMRP, PIM-DM, PIM-SM, PIM-SSM, Anycast RP, MSDPStatic Multicast RouteMulticast Receive ControlIllegal Multicast Source Detect | |
| ARP Guard, Local ARP proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP LimitAnti ARP Cheat, Anti ARP Scan | |
| DNS Client, DNS Relay | |
| ICMPv6, ND, DNSv6IPv6 Policy-based Routing (PBR)IPv6 VRRPv3, IPv6 URPF, IPv6 RARIPng, OSPFv3, BGP4+MLD Snooping, IPv6 Multicast VLANMLDv1/v2, PIM-SM/DM for IPv6, IPv6 Anycast RP, IPv6 ACL, IPv6 QoS | |
| QoS | 8 QueuesSP, WRR, SWRR, WDRR, SWDRRWREDTraffic Classification Based on 802.1p COS, ToS, DiffServ DSCP, ACL, port numberTraffic PolicingPRI Mark/Remark |
| ACL | IP ACL, MAC ACL, IP-MAC ACLStandard and Expanded ACL Based on source/destination IP or MAC, IP Protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoSRedirect and StatisticsRules can be configured to port, VLANTime Ranged ACL |
| Security | IEEE 802.1x AAAPort, MAC-based authenticationAccounting based on time length and trafficGuest VLAN and auto VLAN |
| RADIUS for IPv4 and IPv6 | |
| TACACS+ for IPv4 and IPv6 | |
| MAB | |
| DHCPv4/v6 | DHCP Server/Client for IPv4/IPv6DHCP Relay/Option 82DHCP Snooping/Option 82 |
| Traffic Monitor | sFlow Traffic Analysis |
| Security Network Management | CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6Syslog and external Syslog ServerHTTP SSLSNMP MIB, SNMP TRAPFTP/TFTPSNTP/NTPRMOM 1,2,3,9Authentication by Radius/TACACSSSH v1/v2Dual firmware images/ Configuration files802.3ah OAM, 802.1ag OAM |
| Data Center Features | VSF (Virtual Switch Framework) |
Application
Gigabit access with 10G uplink in a campus network
Ideal switch to support access points, cameras. IEEE 802.3bt ready for Wi-Fi 6
Order Information
|
Product |
Description |
| S5750M-30X-P-SI | Full 2.5G PoE Ethernet Routing Switch, 24 x 100/1000M/2.5G BaseT + 4 x 10GE(SFP+) + 2 x 40G(QSFP+) ports, modular power (2 power modules at most, 1+1 redundancy. Standard with 1 AC power module), up to 1060W for PoE(2 PSUs) |
| M5750-AC-B | AC power supply, 600W, fit for S5750M-30X-P-SI |
