Description
SPECIFICATIONS
| OPTION | INPUT TUNER | PARAMETER | VALUE |
|

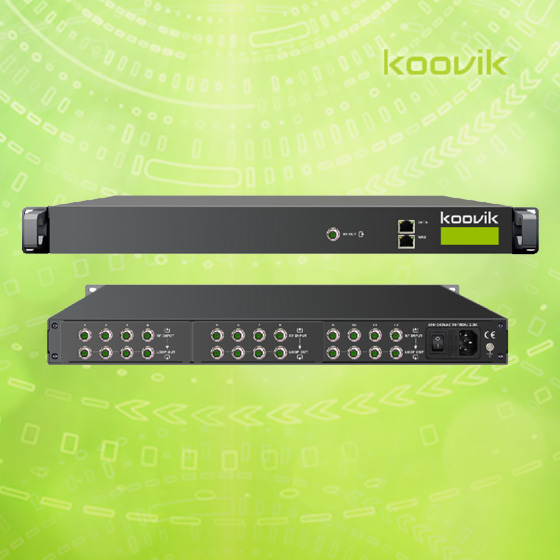

SAT ORDERING CODE: 12SATPRO4-RF |
12 x DVB-S/S2 |
INPUT FREQUENCY | 950 to 2150 MHz |
| SYMBOL RATE | 1 to 45 MBaud. QPSK or 8PSK | ||
| INPUT LEVEL | -65 to -25dBm | ||
| CODE RATE | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | ||
| LNB POWER | 18VDC + 22KHz + DisEqc | ||
| TERR
ORD. CODE: 12TERRPro6-RF or ISDB ORD. CODE: 12ISDBPro6-RF |
12 x DVB-T/T2 or 12 x ISDB-Tb |
INPUT FREQUENCY | 30 to 1000MHz |
| BANDWIDTH | 6, 7, 8 MHz | ||
| INPUT LEVEL | 29 to 90dBμV, -80 to -19dBm | ||
| FFT MODE | 1k, 2k, 4k, 8k, 16k, 32k | ||
|
CABLE ORDERING CODE: 12CABLEPRO6-RF |
12 x DVB-C/QAM |
INPUT FREQUENCY 30 to 1000MHz | |
| MODULATION | 16, 32, 64, 128, 256 QAM | ||
| INPUT LEVEL 16 to 90 dBµV, -93 to -19 dBm | |||
| STANDARDS | ITU-T J.83A(DVB-C), J.83B, J.83C | ||
| IP INPUTS | |
| IP | 128 SPTS/MPTS UDP/RTP UNICAST or MULTICAST |
| DIGITAL RF MODULATOR (*option – Pg. xxmodxx for detailed modulators spec’s) | |
| DVB-T (4xRF MUXES)
ORDERING CODE: 12SATPro4-DVBT (DVB-S2input – *other input tuners available) |
DVB-C (4xRF MUXES) ORDERING CODE: 12SATPro4-DVBC (DVB-S2input – *other input tuners available) |
| OUTPUTS | |
| IP MPTS | 4 MPTS over UDP or RTP/RTS. Unicast or Multicast. Mirror of each RF DVB MUX. |
| NETWORK | GigaE/100Base-T Ethernet Interface. |
| GENERAL | |
| SET-UP | Network Management Setup – NMS: Embedded web server (English). |
| POWER SUPPLY | Built-in Universal Power Supply (100 to 240VAC, 50/60Hz), Consumption : 25VA |
| DIMENSIONS | DEVICE: 483X300X44MM (WXHXT) INCLUDING CONNECTORS. CARTON: 600X600X140MM (WXHXT) |
| WEIGHT | NET: 3.7 KGS GROSS: 4.2 KGS |
| TEMPERATURE | OPERATING: 0 TO 45°C UP TO 90% HUMIDITY. STORAGE: -20 TO 80°C UP TO 90% HUMIDITY |
| INCLUDED | 1 x mains cable, 1 x ground cable, 8 x RF loop cable. |
