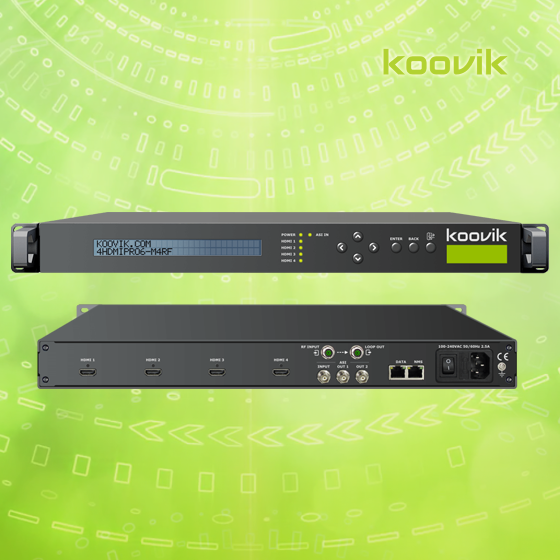

Description
SPECIFICATIONS
| INPUTS | |
|---|---|
| HDMI | 4 x HDMI INPUTS |
| ASI | 1 × BNC 75 Ω female. 270 Mbit/s. 800 mV (Vpp). According EN 50083-9 |
| ENCODER | ||
|---|---|---|
| VIDEO | CODEC | MPEG4 AVC H.264. High and Main profile. |
| RESOLUTION | 1080p 50/60fps, 1080i 50/60fps, 720p 50/60fps, 576i 50fps, 480i 60fps | |
| DOWNSCALE | Same as input or downscale to 1080i 50/60fps, 1440x1080i 50/60fps, 720p 50/60fps, 576i 50fps. | |
| BIT-RATE | 0.8 Mbps to 19 Mbps. CBR or VBR. User selectable per each video input. | |
| GOP STRUCTURE | IBBP | |
| PRE-TREATMENT | DE-INTERLACE, NOISE REDUCTION, SHARPENING | |
| AUDIO | CODEC | MPEG-1 LAYER 2, AC3 PASSTHROUGH. (HE-AAC V2, AND LC-AAC WITH AAC OPTION) |
| BIT RATE | 64Kbps to 384Kbps | |
| SAMPLE RATE | 48KHz (24 BIT RESOLUTION) | |
| GAIN ADJUST | 0 – 400 | |
| TS PROCESS | |
|---|---|
| MULTIPLEXER | PID filtering and remapping. PSI/SI table generation, and edition. |
| * OPTION: DVB-T MODULATOR | |
|---|---|
| STANDARD | EN300 744 |
| RF FREQUENCY | 30 to 960MHz, Step: 1KHz |
| RF OUTPUT LEVEL | -30 to -10 dBm (79 to 99dBµV) Step: 0.1dB | Each MUX level offset : 0 to -10dB |
| BANDWIDTH | 6MHz, 7MHz, 8MHz |
| CONSTELLATION | QPSK, 16QAM, 64QAM |
| GUARD INTERVAL | 1/4, 1/8, 1/16, 1/32 |
| FEC RATE | 1/2, 2/3, 3/4, 5/6, 7/8 |
| COFDM FFT | 2K, 8K |
| MER | > 42dB |
| NUMBER OF RF MUXES | 2 (Max MUX distance = 32MHz) |
| ORDERING CODE | 4HDMIPro6-M4DVBT |
| * OPTION: DVB-C / QAM MODULATOR | |||||||
|---|---|---|---|---|---|---|---|
| RF FREQUENCY | 30 to 960MHz, Step: 1KHz | ||||||
| RF OUTPUT LEVEL | -30 to -10 dBm (79 to 99dBµV) Step: 0.1dB | Each MUX level offset : 0 to -10dB | ||||||
| MER | > 43 dB | ||||||
| SYMBOL RATE | 5.0 to 9.0 MSym/s, Step: 1KSym/s | ||||||
| STANDARD | ITU J.83A (DVB-C) | J.83B / J.83C | |||||
| BANDWIDTH | 8 MHz | 6MHz | |||||
| CONSTELLATION (QAM) | 16 | 32 | 64 | 128 | 256 | 64 | 256 |
| BITS / SYMBOL | 4 | 5 | 6 | 7 | 8 | 6 | 8 |
| NUMBER OF MUXES | 2 (Max MUX distance = 32MHz) | ||||||
| ORDERING CODE | 4HDMIPro6-M4DVBC | ||||||
| OUTPUTS | |
|---|---|
| IP SPTS | 4 SPTS over UDP or RTP/RTSP. Unicast or Multicast. |
| ASI | 1 x ASI ( 2 mirrored ASI outputs ). ASI input REMUXED with 4 x HDMI TS. BNC 75 Ω female. |
| NETWORK | 100Base-T Ethernet Interface |
| GENERAL | |
|---|---|
| SET-UP | Local: Front panel LCD display and keyboard. Network Management Setup – NMS: Embedded web server (English). |
| POWER SUPPLY | Built-in Universal Power Supply (100 to 240VAC, 50/60Hz), Consumption : 25VA |
| DIMENSIONS | Device: 483x420x44mm (WxHxT) including connectors. Carton: 600x600x140mm (WxHxT) |
| WEIGHT | Net: 4.0 Kgs Gross: 4.5 Kgs |
| TEMPERATURE | Operating: 0 to 45°C up to 90% humidity. storage: -20 to 80°C up to 90% humidity |
| INCLUDED | 1 x mains cable, 1 x ground cable, 4 x HDMI to HDMI cable, 2 x BNC male to BNC male. |
