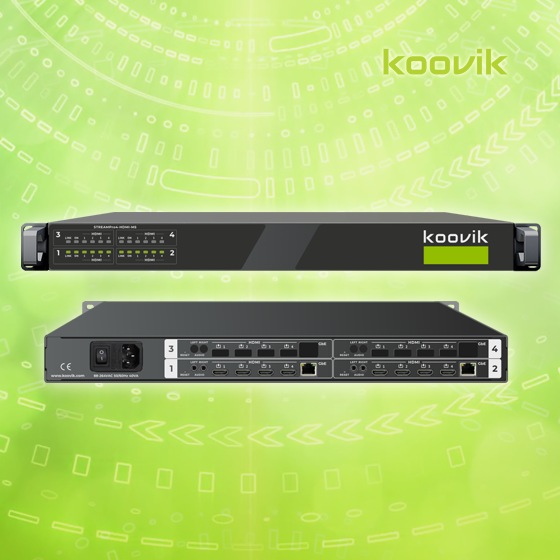

H.264/H.265 HEVC 4K HD ENCODER AND IPTV STREAMING HEADEND

  • 8 HDMI High Quality Efficient H.264/H.265 HEVC ENCODER inputs.
  • UDP, RTP, RTSP, RTMP RTMPS, HLS, or HTTP IPTV SPTS outputs.
  • Each input may be encoded to up four different resolutions. Main Stream + 3 substreams.
    *Hardware restrictions apply depending on in/out resolutions.
  • Image and/or texts OSD independent per each HDMI input.
  • Lost Signal image.
  • Easy-to-Use HTTP-Based Control Interface. Embedded web server.
  • Used on high performance hospitality, industrial, broadcast,  high performance computing, web-based video streaming, video surveillance, etc. applications

Add to wishlist
Categories: ,

Description

SPECIFICATIONS

INPUTS
HDMI 8 (*Note: version available with 16 inputs)
ENCODER
VIDEO CODEC H.265-HEVC or AVC H.264 High, Main or Baseline Profile. Independent selection per each input.
INPUT RESOLUTION All inputs: 1080p@60fps, 1080i@60fps, 720p@60fps. Inputs 1,2,5, and 6 support also 4K (3840×2160@30fps).
OUT RESOLUTION Equal or lower to input resolution per each input. Stream each source into multiple resolutions and bitrates.
BIT-RATE 32 Kbps to 32 Mbps. CBR or VBR. User selectable per each HDMI input.
FPS 5 to 60 FPS
AUDIO INPUT HDMI (all inputs) and/or 3.5mm L/R Analog Audio for inputs 1,2,5, and 6 inputs.
CODEC AAC, AAC+, AAC++, MP2, MP3, AC3, G711.
BIT RATE 12Kbps to 320Kbps
SAMPLE RATE 44.1KHz or 48KHz
GAIN ADJUST -50 to +50
OSD Up to 4 objects. Image (.png, or 24 bit .bmp), Text (select font, size, color and background), or scrolling Text.
TS PROCESS
MUXER FFMPEG or VLC.
OUTPUTS
IP SPTS 8 SPTS over UDP – RTP – HTTP – HLS – RTSP – RTMP – RTMPS. Unicast or Multicast.
HLS Chunk size: 3 to 20 seconds. Chunk count: 3 to 20.
NETWORK 2xGigaE 1000Base-T.
GENERAL
SET-UP Network Management Setup – NMS: Embedded web server (English).
POWER SUPPLY Built-in Universal Switch Mode Power Supply ( 90 to 260VAC 50/60Hz), Consumption : 20VA
DIMENSIONS Device: 483x250x44mm (WxHxT) including connectors. Carton: 538x302x95mm (WxHxT)
WEIGHT Net: 4.0 Kgs Gross: 4.6 Kgs
TEMPERATURE Operating: 0 to 45°C up to 90% humidity. storage: -20 to 80°C up to 90% humidity
INCLUDED 1 x mains cable.
