Description

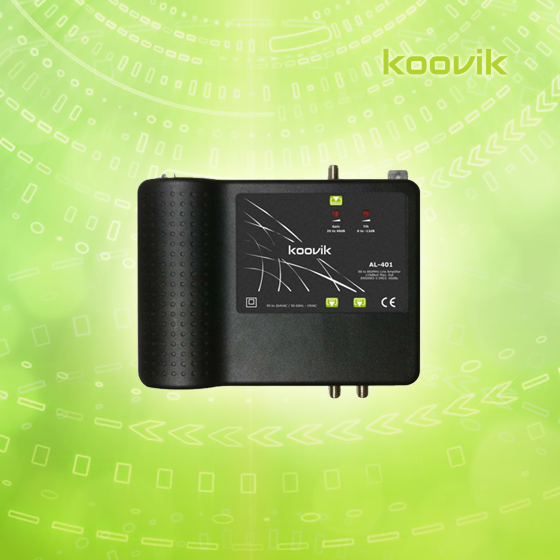

| Model | AL-401 |
| Number of inputs | 1 |
| Bandwidth | 88-862MHz |
| Gain | 40 dB |
| Gain Regulation | -20 dB |
| Tilt Regulation | -15 dB @ 88MHz |
| Noise Figure | 5.5dB @ VHF, 7.0 dB @ UHF |
| In/Out return loss | 8 dB |
| Out Level | 119 dBµV DIN 45004B (-60dBc) |
| Test output | -30dB |
| Housing | Zamak die-cast |
| Dimensions (mm) | 195 x 145 x 52 |
| Power Supply | Universal, switch mode 85 to 264VAC |
| Power Consumption | 7VAC |
