Description
| Model | SC-917 | |
| Purpose | Signal wall directly sent to panel | |
| System Connected | Control panel zone | |
| Input Source | Zone Signal | |
| Output Contacts/Load | N/A | |
| EOL Resistor | 10k0 | |
| Assress Coding | Binary | |
| Operating Voltage | 16- 32V GC | |
| Alarm Current | 6mA | |
| Quiescent Current | 650 – 850 A | |
| Ambient Temperature | 0°C – +50°C | |
| Material | Fire-Proof Plastic | |
| Color | Red | |
| Dimension (mm) | 87.5(H) x87.5(W) x 54(0) | |
| Remarks | Protection Cover is Optional | |

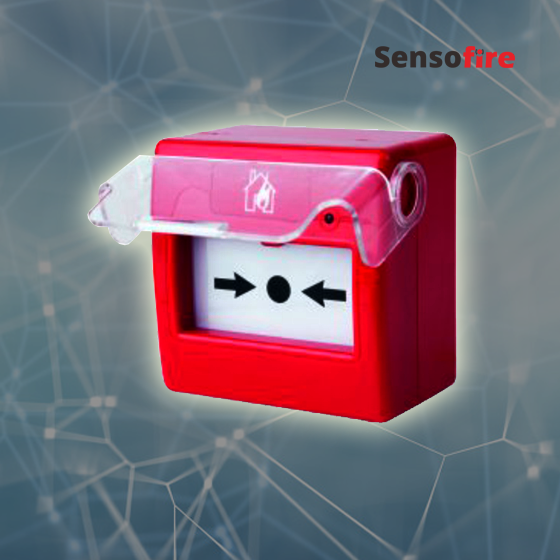

SB-917
