Description

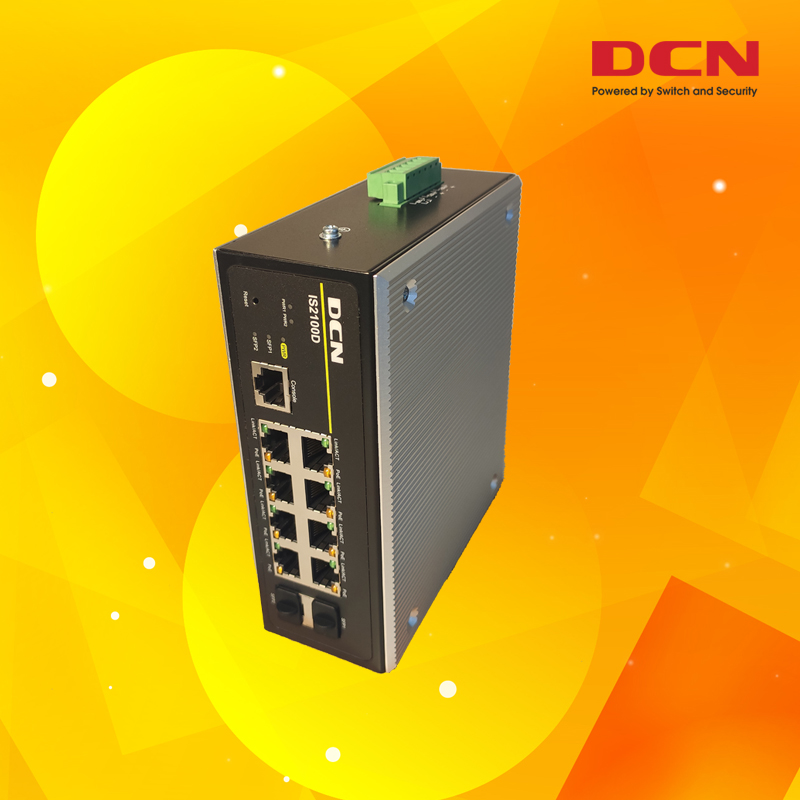

| Item | IS2100D-2GF8TX(R2) | ||
| Device port | 8*10/100M electrical interface+ 2*SFP port | ||
| Switching capacity | 20G | ||
| Packet forwarding rate | 4.2Mpps | ||
| Jumbo | 10K | ||
| Standards | IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
||
| VLAN characteristics | Support Port-based VLAN
Support IEEE802.1Q VLAN Support private VLAN Support Protocol VLAN Support Voice VLAN Support MAC VLAN Support ordinary QinQ Support selective QinQ Support flexible QinQ Support VLAN Translation Support N:1 VLAN Translation |
||
| DHCP | Support IPv4/IPv6 DHCP Client and IPv4/IPv6 DHCP Relay
Support Option 82 and Option 37/38 Support IPv4/IPv6 DHCP Snooping and IPv4/IPv6 DHCP Server |
||
| Reliability | Dual DC power input, support system power failure alarm
Support STP，RSTP，MSTP Support multi-process MSTP* Support LACP load balance Support EMVTE（ULPP+ULSM）and MRPP Support G.8032 standard ring network protocol Support Loopback detection, VCT, DDM Support ULDP（to realize the same functions as Cisco UDLD） |
||
| Safety | Support port speed limit
Support broadcast storm control based on message and number of bytes Support port/MAC binding and MAC filter Support MAC number limit based on port and based on VLAN Support anti-ARP spoofing, anti-ARP scanning and ARP binding Support DHCP Snooping and ND Snooping Support DAI Support standard IEEE 802.1x, extended IEEE 802.1x and Web Portal Support TACACS+ |
||
| Multicast | Support IGMP v1/v2/v3 snooping and IGMP Fast leave
Support MLD v1/v2 snooping Support multicast VLAN and IPv4/IPv6 DCSCM |
||
| QoS | Support ACL-based stream, VLAN ID, COS, TOS and DSCP
Support aggregated PolicyMap Support PolicyMap binding based on port and based on VLAN Support single speed, single barrel and double color Support field rewriting of DSCP, COS/802.1p priority and TOS Support 8 queues per port Support queue scheduling algorithms of SP, WRR, SWRR and DWRR Support matching IP segment message |
||
| ACL | Support IP ACL, matching based on fields such as source/destination IP, IP protocol type, IP priority, TCP/UDP source and destination port number
Support MAC ACL, message matching based on fields such as source/destination-based MAC, VLAN ID and COS Support IP+MAC combination ACL Support custom ACL Support effective ACL according to time range Support ACL binding based on port and based on VLAN Support ACL-based redirection Support execution of traffic statistical analysis function according to ACL matching |
||
| Management, operation and maintenance | Support CLI
Support IPv4/IPv6 HTTP Support IPv4/IPv6 FTP/TFTP Support IPv4/IPv6 SNTP/NTP Support radius authentication of telnet user name and password of IPv4/IPv6 Support SSH of IPv4/IPv6 Support Security IP security network management function Support syslog of IPv4/IPv6 Support SNMPv1/v2c/v3 Support MIB port, support Trap Support RMON 1，2，3 and 9 groups Support dual IMG and multiple profile Support LLDP Support port mirroring, CPU mirroring and RSPAN Support sFlow flow monitoring Support Reset one-key reset Support OAM Support mirror sampling |
||
| Energy conservation and environmental protection | Support 802.3az Energy Efficient Ethernet EEE
Fan-free mute design to reduce noise |
||
| Dimensions | 165*140*60mm | ||
| Relative humidity of operating environment | 10%～95%, no condensation | ||
| Temperature of operating environment | -40°C～85°C | ||
| Temperature of storage environment | -40°C～85°C | ||
| Rated power input | 50 ~ 57 VDC | ||
| Standard and Certification | CE/FCC
EN 61000-6-2,EN 61000-6-3,EN/IEC61000-4-2, EN/IEC61000-4-3, EN/IEC61000-4-4 EN/IEC61000-4-5, EN/IEC61000-4-6, EN/IEC61000-4-8,EN/IEC61000-4-9,EN/IEC61000-4-11 EN60950 IEC60068-2-32 Freefall IEC60068-2-27 Shock IEC60068-2-6 Vibration |
||
| MTBF | >430K Hours | ||
