Description

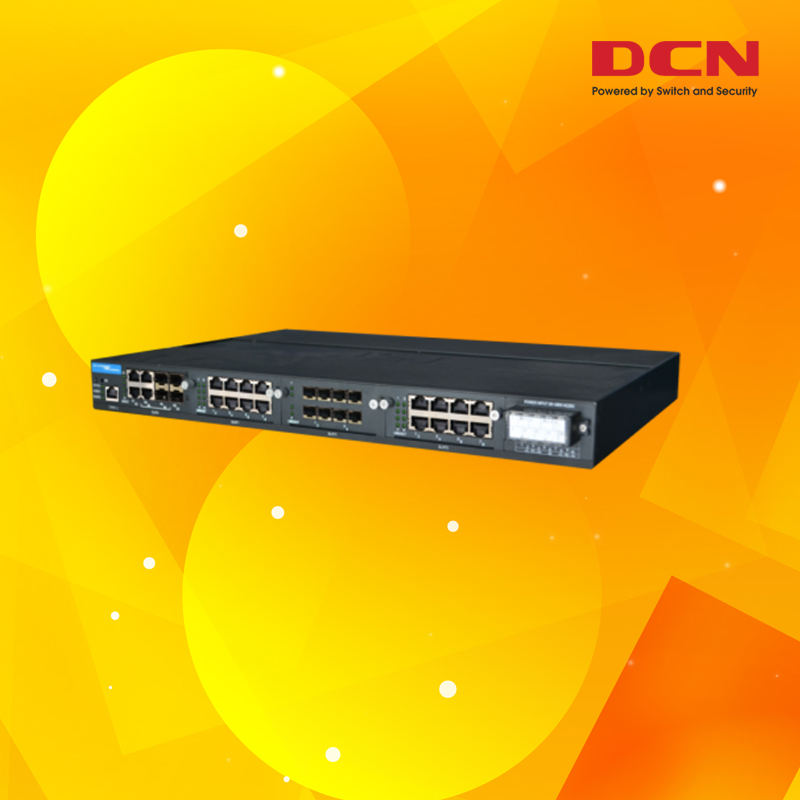

| Model | IS5600 | ||
| Teknologi | |||
| Standard | IEEE 802.3u untuk 100BaseT(X) dan 100BaseFX IEEE 802.3ab untuk 1000BaseT(X) IEEE 802.3z untuk 1000BaseX IEEE 802.3x untuk Flow Control IEEE 802.1D-2004 untuk Protokol Spanning Tree IEEE 802.1w untuk Rapid STP IEEE 802.1s untuk Protokol Multiple Spanning Tree IEEE 802.1Q untuk Tagging VLAN IEEE 802.1p untuk Class of Service IEEE 802.1X for Authentication IEEE 802.3ad untuk Port Trunk dengan LACP |
||
| Performa | |||
| Rate Forwarding | 10Mbps:14880pps 100Mbps:148800pps 1000Mbps:1488000pps |
||
| Kapasitas Switching | IS5600G-28M: 56Gbps | ||
| Grup IGMP | 4K | ||
| Ukuran Tabel MAC | 16K | ||
| Nomer VLAN tersedia | 4K | ||
| Antrian Prioritas | 8 | ||
| Ukuran Buffer | 32M | ||
| Aturan ACL | 3K | ||
| Frame Jumbo | 12 bytes | ||
| Port | |||
| Port Tetap | |||
| IS5600G-28M | 4 * 10/100/1000 port Combo 3 slot Extended |
||
| Modul Extended | IS5600E-28M | 8-port 10/100TX modul dengan Konektor RJ-45 | |
| 8-port 100Mbps modul SFP | |||
| 4-port 100Mbps multi/single mode fiber modul dengan konektor SC/ST | |||
| IS5600G-28M | 8-port 10/100/1000T modul dengan Konektor RJ-45 | ||
| 8-port Gigabit modul SFP | |||
| 4-port 1000Mbps multi/single mode fiber modul dengan konektor SC/ST | |||
| Mirroring Port | Port monitor 1:1, n:1 | ||
| Trunk Port | Mendukung IEEE802.3ad, LACP | ||
| Port Manajemen | Konsol | ||
| Lampu LED | POWER, Status manajemen, Link/Active dan Transceiver | ||
| Kontrol Bandwidth | Steps 64kbps | ||
| Storm Control | mendukung Broadcast / Multicast / Unicast Storm Control | ||
| Proteksi Port | mendukung MAC binding , Filter alamat MAC, MAC limit | ||
| VCT&DDM | VCT | ||
| Deteksi Port Loop | Ya | ||
| Port Isolation | Ya | ||
| Fitur Utama | |||
| Mode Forwarding | StorE and Forward | ||
| VLAN | VLAN Port-based Mendukung IEEE 802.1Q, hingga 4094 VLAN VLAN MAC-based VLAN Protokol-based VLAN Privat GVRP Normal QinQ, selektif QinQ |
||
| DHCP | Klien DHCP IPv4/IPv6, Relay DHCP IPv4/IPv6 Option 82,Option 37/38 Snooping DHCP IPv4/IPv6, Server DHCP IPv4/IPv6 |
||
| Route | Protokol Route | Static route, RIPv1/v2 OSPFv2 | |
| Tabel Host Layer 3 | 4k | ||
| Fowarding Route | 16k | ||
| Redundasi Route | VRRP | ||
| Muliticast | PIM-SM | ||
| Keandalan | Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTP Root Guard, BPDU Guard, BPDU Forwarding |
|
| LACP | mendukung LACP Load balance |
||
| Proteksi Ring L2 | Ring protection protocol (ERPS) Deteksi Loopback |
||
| Keamanan | IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL Time Range ACL Port Security, MAC Limit berdasarkan VLAN dan Port Anti-ARP-Spoofing , Anti-ARP-Scan, ARP Binding Snooping ND DAI IEEE 802.1x, MAB (MAC berdasarkan otentikasi) Authentication, Authorization, Accounting Radius, TACACS+ |
||
| Multicast | IGMP v1/v2/v3 snooping, IGMP Fast leave MVR IGMP packet filtering Multicast control MLD v1/v2 snooping |
||
| QoS | 8 Queues Bandwidth Control Flow Redirect Klasifikasi berdasarkan ACL, VLAN ID, COS, TOS, DSCP, IPv6 Flow Label Policing berdasarkan Port dan VLAN Single Rate Dual Colors Remark COS/802.1p, IP Precedence, DSCP, TOS SP, WRR, SP+WRR untuk scheduling |
||
| Pemeliharaan dan Manajemen Operasi |
TFTP CLI, Telnet, Console, SSH (IPv4/IPv6) Web/SSL (IPv4/IPv6) SNMPv1/v2c/v3 Public & Private MIB interface RMON 1,2,3,9 Ping, Trace Route Otentikasi Radius Syslog (IPv4/IPv6) SNTP/NTP (IPv4/IPv6) Dual IMG, Multiple File konfigurasi Mirror Port, Mirror CPU OAM 802.3ah VCT, DDM ULDP LLDP/LLDP MED |
||
| Energi Ramah Lingkungan |
design Fanless | ||
| Spesifikasi Perangkat Keras | |||
| Dimensi (L x D x T) | 440mm x 300mm x 44mm (L×D×T) | ||
| Berat | <4kg | ||
| Pemasangan | Standar Rack Industri atau Instalasi “arbitrary plane” | ||
| Lain-lain | Design Fanless, Proteksi IP40 | ||
| Kinerja Listrik | |||
| Tegangan Input | 85~265V AC/DC | ||
| Konsumsi Daya | IS5600E-28M: <30Watts IS5600G-28M: <60Watts |
||
| Lingkungan Kerja | |||
| Suhu Kerja | -40 to 80 | ||
| Suhu Penyimpanan | -45 to 80 | ||
| Kelembaban Relatif | 0% ~ 95%, Non-condensing | ||
| Redundansi | |||
| Redundansi Jaringan | Mendukung Proteksi Ring, <50ms Mendukung single, dual and tangent ring Mendukung STP/RSTP |
||
| Redundansi Port | Mendukung Port Trunk Ring protection protocol(ERPS) |
||
| Standar dan Sertifikasi | |||
| ISO | ISO9001:2008 | ||
| EMI | FCC Part 15 (Class A), EN55022 (CISPR22 Class A), EN55024 (Class A), CE, EN50121-3-2, EN50121-4 IEC61850 |
||
| EMC | EN61000-4-2, EN61000-4-3, EN61000-4-4 EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-12 | ||
| Keamanan | UL CSA 60950, CAN/CS-C22.2 No.60950, EN 60950 | ||
