Description
Specifications
|
Item |

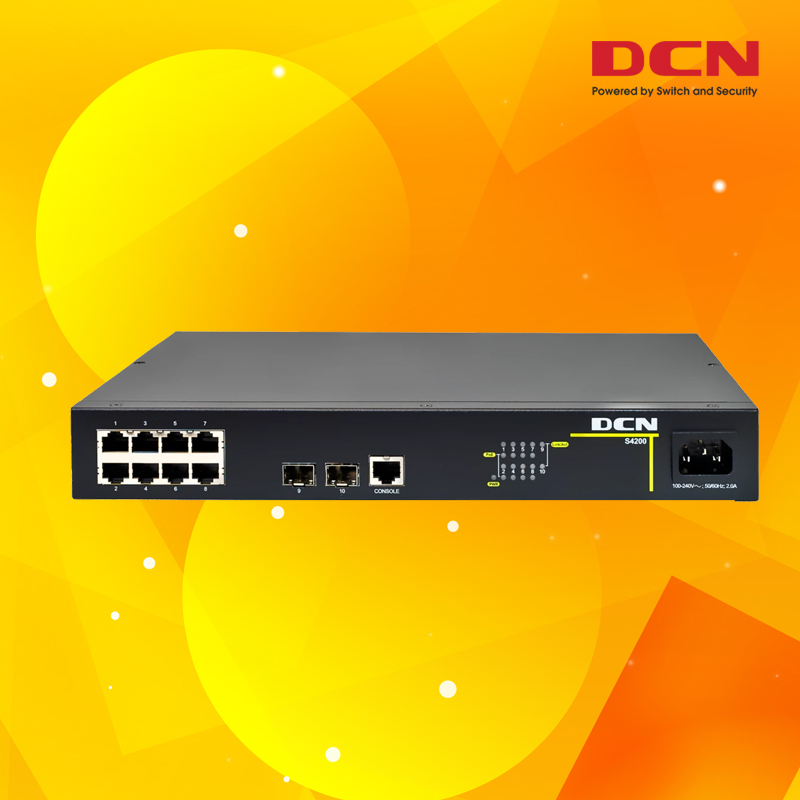

S4200-10P-PL-SI | ||
| Ports | 8 x 100/1000Base-T + 2 x 100/1000Base-X (SFP)
Auto-MIDX |
||
| Performance | |||
| Switching Capacity | 20Gbps | ||
| Forwarding Rate | 14.88Mpps | ||
| Flash | 32M | ||
| RAM | 128M | ||
| MAC ADDRESS | 8K | ||
| Jumbo Frame | 10K | ||
| ACL Table | 1536 | ||
| Queues per port | 8 | ||
| VLAN TABLE | 4K | ||
| Physical Features | |||
| Dimension(W×H×D) |
320mm x 43.6mm x 208mm |
||
| Power Input | 100~240VAC, 50~60Hz | ||
| Power Consumption | Without PD: < 8wWith PD: < 80w | ||
| Cooling | Passive | ||
| Temperature |
Working 0°C~50°C, Storage -40°C~70°C |
||
| Relative Humidity |
5%~95%, non-condensing |
||
| EMC Safety |
CE, RoHS |
||
| Main Features | |||
| Forwarding | Storage and Forwarding | ||
| VLAN | Port-based VLAN, IEEE802.1Q, private VLAN, Protocol VLAN, Voice VLAN, MAC VLANNormal QinQ, Selective QinQ, Flexible QinQ
VLAN Translation, N:1 VLAN Translation |
||
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP RelayOption 82, Option 37/38
IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server |
||
| Reliability | Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTPRoot Guard, BPDU Guard, BPDU Forwarding | |
| LACP | 8 groups / 8 ports | ||
| L2 Ring Protection | MRPPERPS(G.8032)
Loopback Detection Fast Link |
||
| Security | IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACLTime Range ACL
ACL rules can be configured to port, VLAN Storm Control based on packets and bytes Port Security, MAC Limit based on VLAN and Port Anti-ARP-Spoofing , Anti-ARP-Scan, ARP Binding ND Snooping IP Source Guard, Dynamic ARP Inspection IEEE 802.1x Authentication, Authorization, Accounting Radius, TACACS+ |
||
| Multicast | IGMP v1/v2/v3 snooping, IGMP Fast leaveMVR
MLD v1/v2 snooping IPv4/IPv6 DCSCM |
||
| QoS | 8 Queues Per PortBandwidth Control
Flow Redirect Classification based on ACL, VLAN ID, COS, TOS, DSCP Policing Based on Port and VLAN Single Rate single barrel double color for Policing Remark DSCP, COS/802.1p, Precedence, TOS SP, WRR, SWRR, DWRR for Scheduling Match the IP fragmentation of message |
||
| Maintenance and Operation Management | TFTP/FTPCLI, Telnet, Console
Web/SSL (IPv4/IPv6) SSH (IPv4/IPv6) SNMPv1/v2c/v3 SNMP Trap Public & Private MIB interface RMON 1, 2, 3, 9 Ping, Trace Route Syslog (IPv4/IPv6) SNTP/NTP (IPv4/IPv6) Multiple Configuration Files Port Mirror, CPU Mirror, RSPAN VCT, DDM ULDP(like Cisco UDLD) LLDP/LLDP MED |
||
| Green Energy | IEEE 802.3az (Energy Efficient Ethernet)Fanless (10P, 10P-PL & 28P)
LED Shut-off |
||
Typical Application
Gigabit access in SMB network
Order Information
|
Product |
Description |
| S4200-10P-SI | L2 Gigabit Intelligent Ethernet Switch with 8*10/100/1000Base-T and 2*100/1000Base-SFP ports, 100-240VAC Power Input |
| S4200-10P-PL-SI | L2 Gigabit Intelligent Ethernet PoE Switch with 8*10/100/1000Base-T and 2*100/1000Base-SFP ports, 100-240VAC Power Input. 30w POE+ Supported. PoE output 70W |
