| Item |

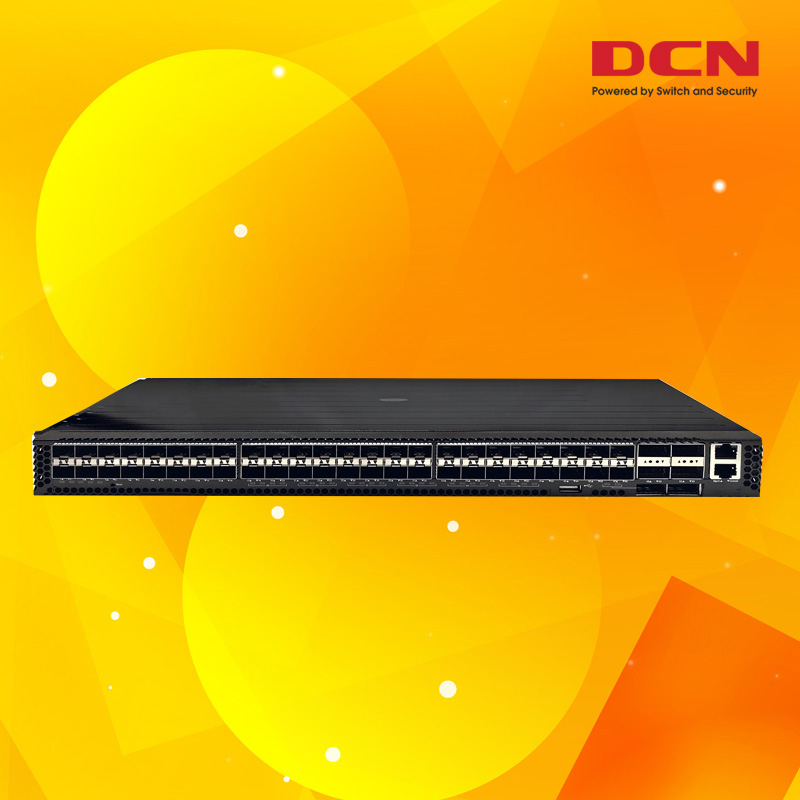

CS6580-48S6CQ-SI |
| Physical port |
48 * 10G/25G SFP28 and 6 * 100G QSFP28 |
| Management port |
Console port RJ4510/100/1000Mbps RJ45 Ethernet Management portUSB2.0 Management port |
| Performance |
| Switching Capacity |
3.6 Tbps |
| Forwarding Rate |
2.6 bpps |
| MAC Address |
160K(Bridge)/80K(Router)/128K(Standard) UFT configuration, default is the bridge |
| ARP Table |
32K(Bridge)/128K(Router)/80K(Standard) UFT configuration, default is the bridge |
| Routing Table |
24K~360K(Bridge)/40K~448K(Router)/24K~360K(Standard) UFT configuration, default is the bridge |
| Physical |
| Dimension(W*H*D) |
438mm*44mm*470mm |
| Relative Humidity |
10%~90% non-condensing |
| Temperature |
Working 0°C~50°C, storage -40°C~75°C |
| Power Input |
AC: 100~240V,50~60 Hz |
| Power Supply |
1+1 Modular Redundant |
| Airflow |
Back-to-front |
| Main Features |
| L1, L2 Features |
IEEE 802.3(10Base-T), IEEE 802.3u(100Base-TX), IEEE 802.3ab(1000Base-T), IEEE 802.3ae(10GBase), IEEE802.3xIEEE 802.3ak(10GBASE-CX4)IEEE 802.3ba |
| 9k Jumbo Frame |
| N:1 Port MirroringRSPAN |
| IEEEE802.1d(STP)IEEEE802.1w(RSTP)IEEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel |
| 802.1Q, 4096 VLANMAC VLAN, Protocol VLAN, Super VLAN |
| Flow control: HOL, IEEE802.3xBandwidth Control |
| L3 Features |
Static Routing, RIPv1/v2, OSPFv2, BGP4Policy-based Routing (PBR)VRRP URPF ECMP |
| QoS |
8 QueuesSWRR, SP, WRR, WDRR, SWDRRTraffic Classification Based on 802.1p CoS, ToS, DiffServ DSCP, ACL, port number PRI Mark/Remark |
| ACL |
IPv4 ACL inbound and outboundDynamic modification of ACLStatistics ACL based Redirect ACL based |
| Security |
Port isolationAnti-ARPAnti DOS-attack |
| Network Management |
CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4Syslog and external Syslog serverSNMP MIB, SNMP TRAP FTP/TFTP SNTP/NTP RMOM 1,2,3,9 Authentication by radius SSH v1/v2 Dual firmware images/ Configuration files |
| Data Center Features |
VSF |
| Stacking |
N:1 Stacking |
