Description

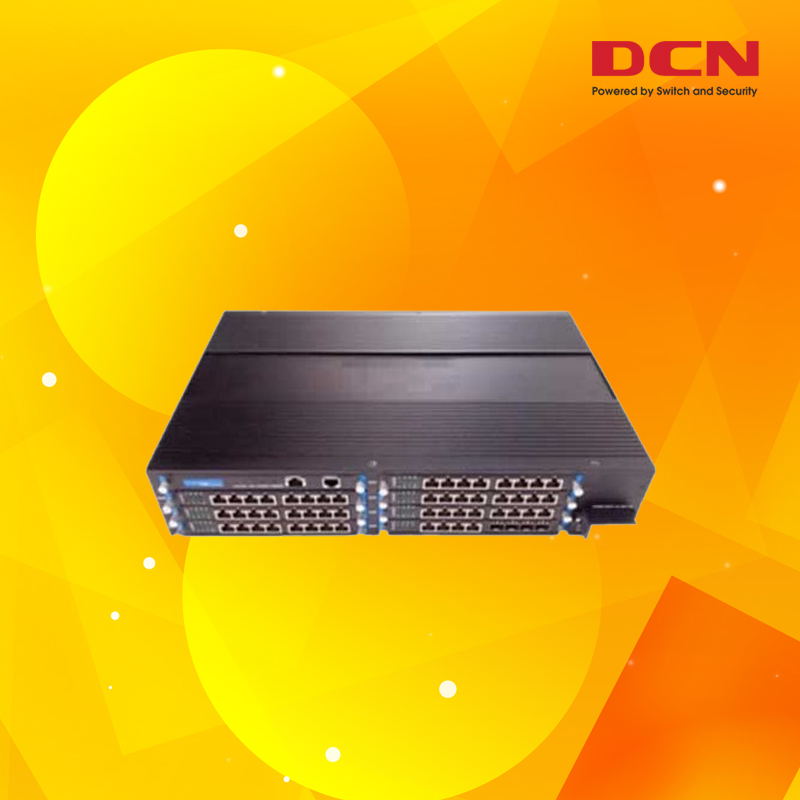

| Attributes | IS5600G-2U/ IS5600XG-2U | |||
| Technology | ||||
| Standards | IEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX IEEE 802.3x for Flow Control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid STP IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tagging IEEE 802.1p for Class of Service IEEE 802.1X for Authentication IEEE 802.3ad for Port Trunk with LACP |
|||
| Performance | ||||
| Forwarding Rate | 10Mbps:14880pps100Mbps:148800pps
1000Mbps:1488000pps |
|||
| Switching Capacity | 128Gbps | |||
| IGMP groups | 4K | |||
| MAC Table Size | 32K | |||
| VLAN number available | 4K | |||
| Priority Queues | 8 | |||
| Buffer size | 32M | |||
| ACL rules | 3K | |||
| Jumbo Frame | 12K bytes | |||
| Ports | ||||
| Fixed Port | IS5600G-2U | 4*GE Combo Ports | ||
| IS5600XG-2U | 4*10GE SFP+ | |||
| Extended module(Slot1-6) | 8-port 10/100TX module with RJ-45 connector | |||
| 8-port 1000Mbps fiber module with SFP slot | ||||
| 4* 10/100/1000 Base-T + 4*100/1000 Base-X SFP | ||||
| Management Port | Console | |||
| LED Light | POWER, Management Status, Link/Active and Transceiver | |||
| Port Trunk | Support IEEE802.3ad, LACP | |||
| Port Mirroring | Port monitor 1:1, n:1 | |||
| Bandwidth Control | Steps 64kbps | |||
| Storm Control | Support Broadcast / Multicast / Unicast Storm ControlSupport set forwarding rate as packets | |||
| Port Protection | Support MAC binding , MAC address filter, MAC limit | |||
| VCT&DDM | Support | |||
| Port Loop Detection | Support | |||
| Port Isolation | Support | |||
| Main feature | ||||
| Forwarding Mode | Storage and Forwarding | |||
| VLAN | Port-based VLANSupport IEEE 802.1Q, up to 4094 VLANs
MAC-based VLAN Protocol-based VLAN Private VLAN GVRP Normal QinQ, selective QinQ |
|||
| DHCP | IPv4/IPv6 DHCP Client,IPv4/IPv6 DHCP RelayOption 82,Option 37/38
IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server |
|||
| Route | Route protocol | Staic route, RIPv1/v2 OSPFv2 | ||
| Layer 3 Host tables | 4k | |||
| Route forwarding | 16k | |||
| Route Redundancy | VRRP | |||
| Muliticast | PIM-SM | |||
| Reliability | Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTPRoot Guard, BPDU Guard, BPDU Forwarding | ||
| LACP | LACP SupportLoad balance | |||
| L2 Ring Protection | Ring protection protocol (ERPS)Loopback Detection | |||
| Security | IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACLTime Range ACL
Port Security, MAC Limit based on VLAN and Port Anti-ARP-Spoofing , Anti-ARP-Scan, ARP Binding ND Snooping DAI IEEE 802.1x, MAB (MAC based authentication) Authentication, Authorization, Accounting Radius, TACACS+ |
|||
| Multicast | IGMP v1/v2/v3 snooping, IGMP Fast leaveMVR
IGMP packet filtering Multicast control MLD v1/v2 snooping |
|||
| QoS | 8 QueuesBandwidth Control
Flow Redirect Classification based on ACL, VLAN ID, COS, TOS, DSCP, IPv6 Flow Label Policing Based on Port and VLAN Single Rate Dual Colors Remark COS/802.1p, IP Precedence, DSCP, TOS SP, WRR, SP+WRR for scheduling |
|||
| Maintenance and Operation Management | TFTPCLI, Telnet, Console, SSH (IPv4/IPv6)
Web/SSL (IPv4/IPv6) SNMPv1/v2c/v3 Public & Private MIB interface RMON 1,2,3,9 Ping, Trace Route Radius Authentication Syslog (IPv4/IPv6) SNTP/NTP (IPv4/IPv6) Dual IMG, Multiple Configuration Files Port Mirror, CPU Mirror OAM 802.3ah VCT, DDM ULDP(like Cisco UDLD) LLDP/LLDP MED |
|||
| Hardware Specs | ||||
| Dimension(W x D x H) | 440mm x300mm x 89mm (W×D×H) | |||
| Weight | <12kg | |||
| Installation | Industry standard rack or arbitrary plane installation | |||
| Others | IP40 protection | |||
| Electrical Performance | ||||
| Input Voltage | 85~265V AC/DC | |||
| Power Consumption | <80Watts | |||
| Working Environment | ||||
| Working Temperature | -40 to 85 ℃ | |||
| Storage Temperature | -45 to 85 ℃ | |||
| Relative Humidity | 0% ~ 90%, Non-condensing | |||
| Redundancy | ||||
| Network Redundancy | Support Ring Protection, <50msSupport single, dual and tangent ring
Support STP/RSTP/MSTP |
|||
| Port Redundancy | Support Port TrunkRing protection protocol(ERPS) | |||
| Standard and Certification | ||||
| ISO | ISO9001:2008 | |||
| EMI | FCC Part 15 (Class A), EN55022 (CISPR22 Class A), EN55024 (Class A), CE, EN50121-3-2, EN50121-4IEC61850 | |||
| EMC | EN61000-4-2, EN61000-4-3, EN61000-4-4 EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-12 | |||
| Safety | UL CSA 60950, CAN/CS-C22.2 No.60950, EN 60950 | |||
